WHEEL LOADERS

L60H

164 hp

Engine Output - Gross

2.7 - 3 yd³

Bucket Capacity

26,620 lbs

Operating Weight

Description

Leave the heavy-duty work for the upgraded L60H, designed to do more, while using less fuel. Combining new optimized loading unit and redesigned counterweight, the next-generation wheel loader delivers up to 20% greater fuel efficiency.

Features and Benefits

  • Wide range of attachments

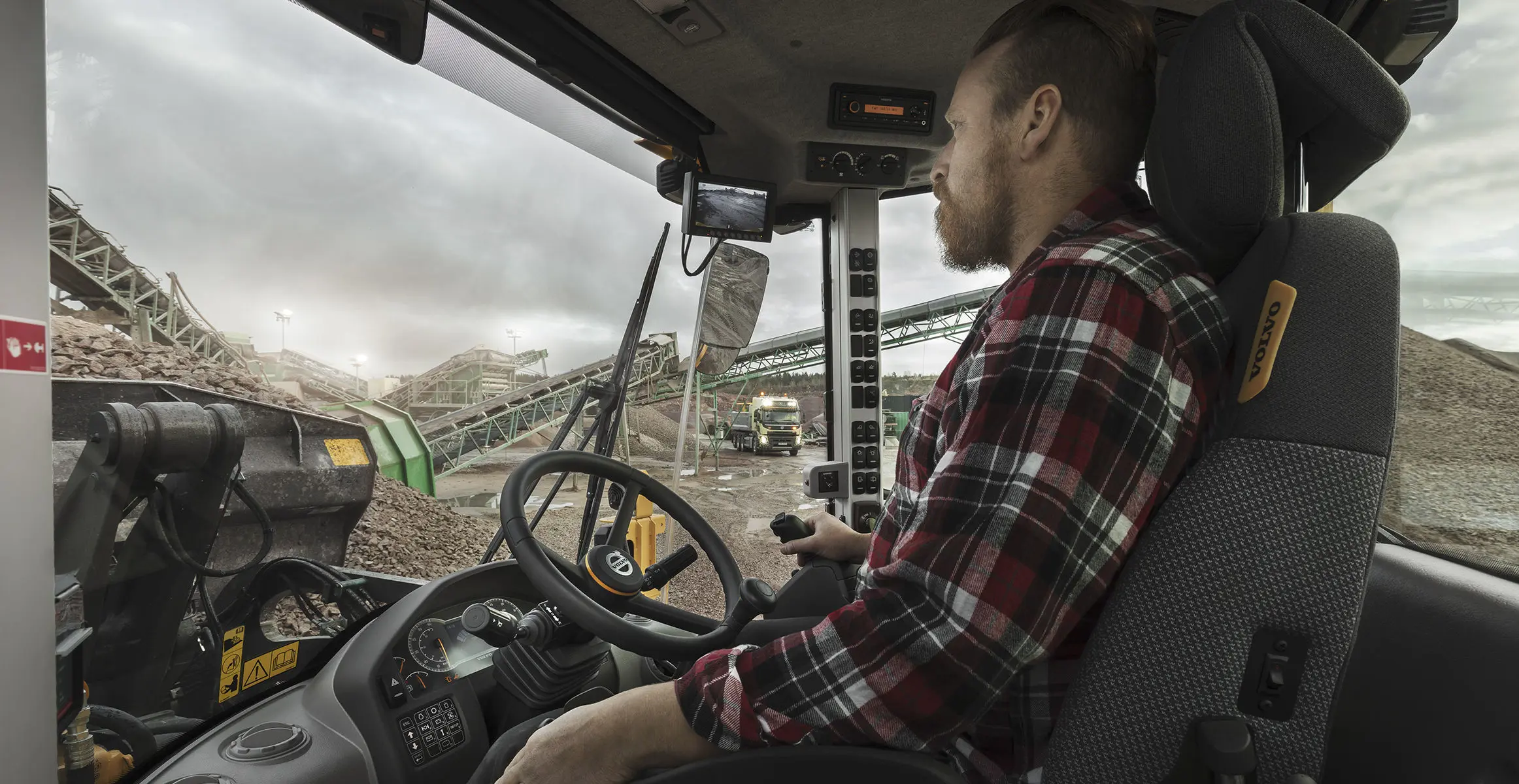

  • Comfortable cab
  • Excellent hydraulics
  • Easy-to-use controls
  • Outstanding serviceability
  • Lifetime Frame & Structure Guarantee Frame (Articulation Joint, Loader Arm)

TECHICAL SPECIFICATIONS FOR L60H

Here are the key specifications for this product model. Want more detail? Download the brochure or contact us.

Capacities

Fuel Tank

58.6 gallons (US) (222 ltr)

Heaped Capactiy

3 yd³ (2.3 m³)

Largest Bucket Capacity

3 yd³ (2.3 m³)

Smallest Bucket Capacity

3 yd³ (2.3 m³)

Dimensions

Bucket Type

GP w/Edge

Bucket Width

8 ft 2 in (2500 mm)

Dump Angle - At Dump

45 °

Dump Angle - Maximum

45 °

Full Lift Dump Height

9 ft 2 in (2800 mm)

Full Lift Reach

3 ft 5 in (1040 mm)

Ground Clearance

17 inches (440 mm)

Height - Maximum

16 ft 9 in (5110 mm)

Height - Over Cab

10 ft 9 in (3270 mm)

Height - Pivot Pin

12 ft 8 in (3870 mm)

Length With Bucket On Ground

24 ft 1 in (7340 mm)

Loader - Geometry

Torque Parallel

Turn Radius Over Bucket - Std.

19 ft 4 in (5890 mm)

Wheelbase

9 ft 10 in (3000 mm)

Width Over Tires - Std

8 ft (2430 mm)

Driveline

After Treatment System

Selective Catalytic Reduction

Aspiration

Turbo - Charge Air Cooled

Displacement

348 Inches³ (5.7 ltr)

Emissions Technology

Cooled Exhaust Gas Recirculation

Engine Manufacturer

Volvo

Engine Model

D6J

Engine Output - Gross

164 hp (122 kW)

Engine Output - Net

164 hp (122 kW)

Rated Speed

1500 rpm

Service Brake - Type

Wet Disc

Tire Size

20.5 R25

Torque

605 lbf / ft (820 Nm)

Traction Control

Yes

Transmission Type

Powershift

Performance

Bucket Breakout

18220 lbf (81 kN)

Full Turn Tipping Load

17070 lbs (7740 kg)

Load Sensing

Yes

Oscillation - Rear Axle

26 °

Ride Control System

Yes

Straight Tipping Load

19740 lbs (8950 kg)

Weights

Bucket Capacity

3 yd³ (2.3 m³)

Operating Weight

26180 lbs (11870 kg)
